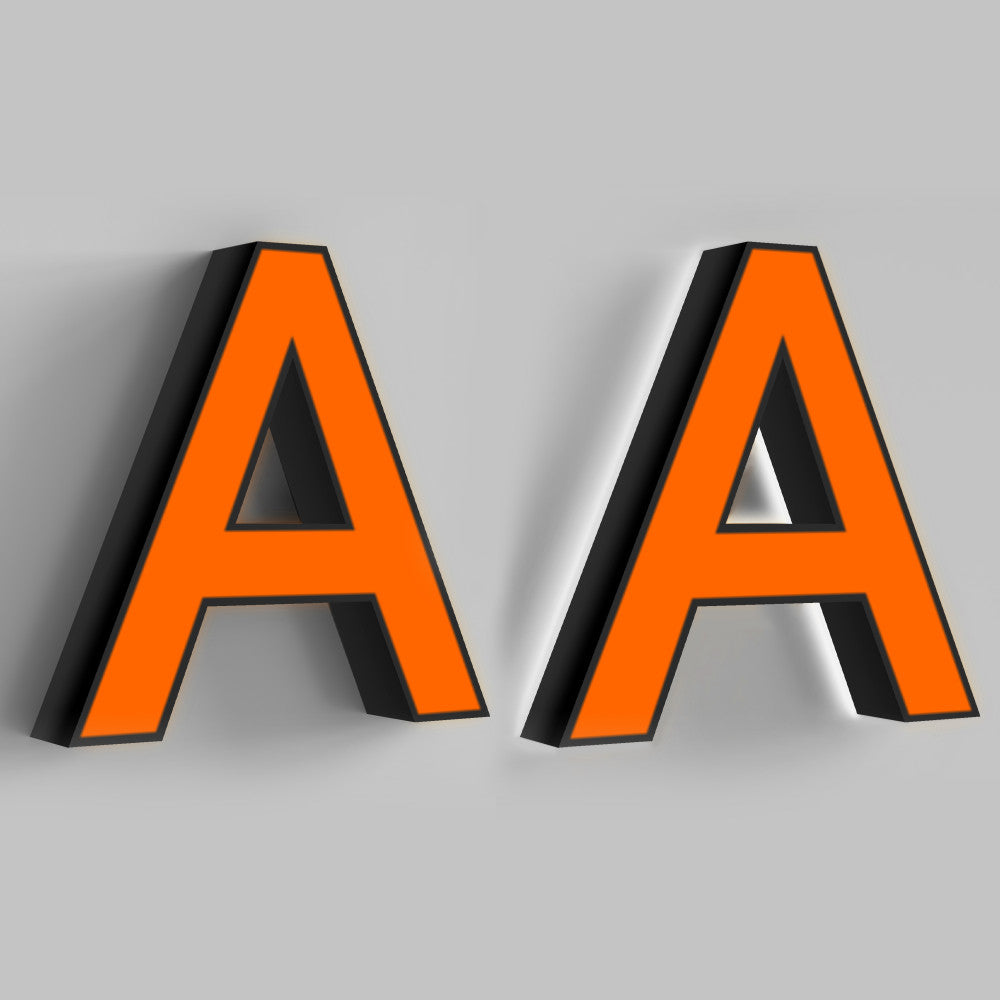

Standard Channel Letter
Description. Ready-to-install, UL-listed LED channel letters with a five-year warranty. Standard construction includes acrylic faces, aluminum returns, LED modules, power supply, wiring diagrams, and an installation pattern. Specificatio...
Description
Description
Ready-to-install, UL-listed LED channel letters with a five-year warranty. Standard construction includes acrylic faces, aluminum returns, LED modules, power supply, wiring diagrams, and an installation pattern.
Specifications
- Front-lit or front-and-back-lit construction
- 3-inch or 5-inch aluminum returns
- 3/16-inch acrylic face
- 3/4-inch or 1-inch trim cap
- LED modules, power supply, three-foot power lead, wiring diagram, and mounting pattern
- Optional translucent vinyl, return colors, and raceway installation
- Five-year limited product warranty
Details
Pricing is based on combined letter height inches for the approved artwork. Set quantity to the total letter inches required for the complete sign. Specialty colors, raceways, complex logos, installation accessories, and artwork that requires fabrication changes must be confirmed before production.
File Setup
Supply simplified vector artwork scaled to the required dimensions. Convert fonts to outlines and colors to CMYK. Clearly identify lighting style, return depth and color, face color, trim-cap color, mounting method, raceway requirements, and overall finished dimensions.
PDF Templates
Upload scaled vector artwork and request an email proof with the production drawing, wiring diagram, and mounting pattern before fabrication.
Template files
Use the template download buttons in the order panel to create a PDF artboard from the selected size. If your exact production dieline is required, choose email proof and note “send exact template before production” in Order details.
- Build files at final size when possible, or at proportional scale for very large products.
- Keep important logos, text, and QR codes inside the safe area.
- Extend background color, photos, and patterns to the bleed area.
- Submit vector PDF, AI, EPS, or high-resolution raster artwork for best results.
Spec
- Select configuration, graphic, hardware, proof, and turnaround options.
- Include any custom dimensions, event dates, or compatibility notes.
- AKD reviews submitted artwork and order details before production.
File setup
- Send vector PDF, AI, or EPS files when possible.
- Raster files should be high resolution and built to final size or proportional scale.
- Keep important text and logos away from trim, stitch, hardware, and edge areas.
- Use the email proof option when you want AKD to confirm the artwork before production.
- For replacement graphics, include the exact hardware/frame model or measurements.
FAQ
Can AKD help with artwork? Yes. Choose AKD design help needed or add the Design It service to your order.
Can I order replacement graphics? Yes. Select replacement graphic where available and include hardware or frame details in the notes.
Can I request rush production? Select rush if available and include your event date. AKD will confirm whether the schedule is possible.
